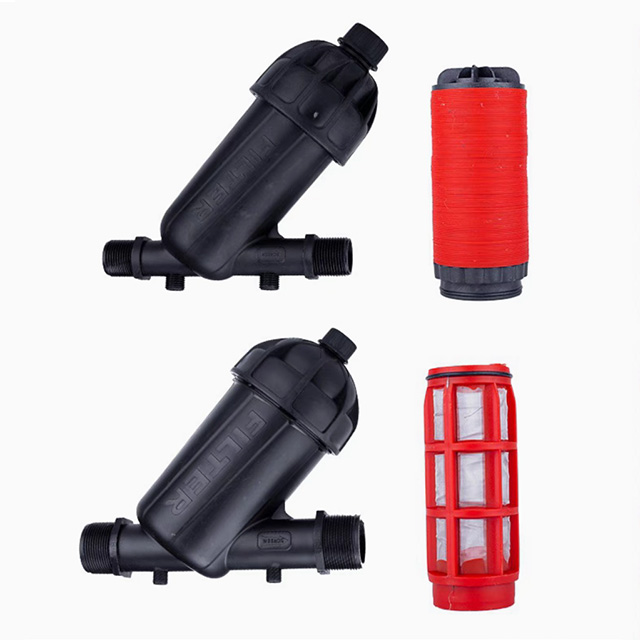

Drip irrigation with filter:
usually installed at the inlet of the equipment to eliminate impurities in the water to protect the normal use of valves and equipment. When the fluid enters the filter cartridge with a certain specification filter screen, its impurities are blocked, and the clean filtrate is discharged by the filter outlet, when it needs to be cleaned, as long as the detachable filter cartridge is removed, it is easy to use and maintain.
Not suitable for removing organic materials such as algae, mold and mucus.
specifications and models:

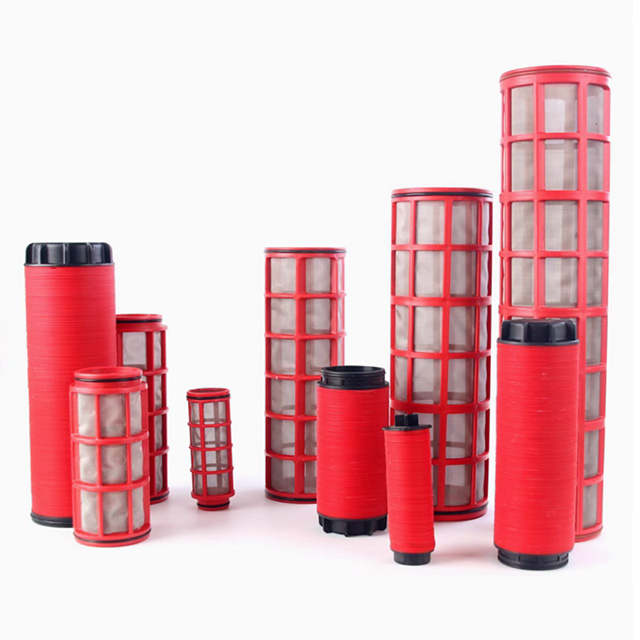

Wide range of polyester and stainless steel screens in 40 to 200 mesh
For 3/4" and 1" filters: Model #’s F300 through F313 and F060 through F075
Features:
Stainless screen cylinder chemical resistance: Acid (very good resistance depending on concentration and temperature. Resistance to most mineral acids is excellent.)
Excellent resistance to low concentration lyes.
Screens have excellent resistance to most common chemicals
Easy maintenance: the screen can be extracted from the filter for easy cleaning
Large filtration area allows longer intervals between flushing
Low friction loss
Applications:
· Drip irrigation filter is widely used for water purification and filtration of sprinkler irrigation and micro-irrigation.
· It can handle sediment, organic matter and other impurities in the water source
· The filter is suitable for irrigation of vegetables, fruit trees, greenhouses, flowers, tea gardens, green Spaces and fields
Working principle:
The mesh filter is composed of the whole mesh of the filter element, and the filter unit is mainly composed of a fine mesh and a ring reinforced plastic skeleton. The water comes out of the inner permeable mesh, so as to retain the impurities in the water to achieve the effect of filtration.
Installation:
1. Mesh filter can be used under the pressure of 6kg/cm2.
2. In order to facilitate the disassembly and maintenance of the laminated filter, it is recommended to install a control valve at the inlet and outlet (only install the valve at the inlet when the single filter is used).
3. The net filter is set up with one inlet and one outlet.
4. In order to confirm the water pressure during work, you can install a pressure gauge at the water inlet. If the water supply pressure is unstable to ensure the constant water supply pressure, please install a pressure regulator.
5. After the installation of the net filter, when using, first open the drain valve to discharge the air, and close the drain valve after confirming that the air has been discharged.
