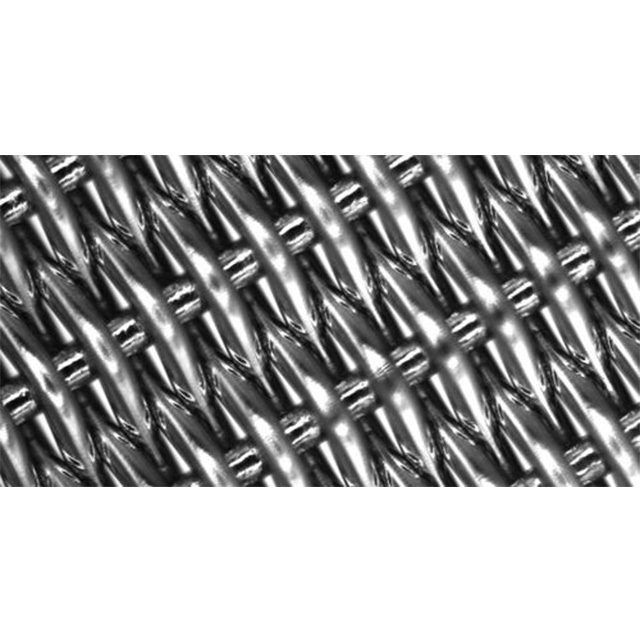

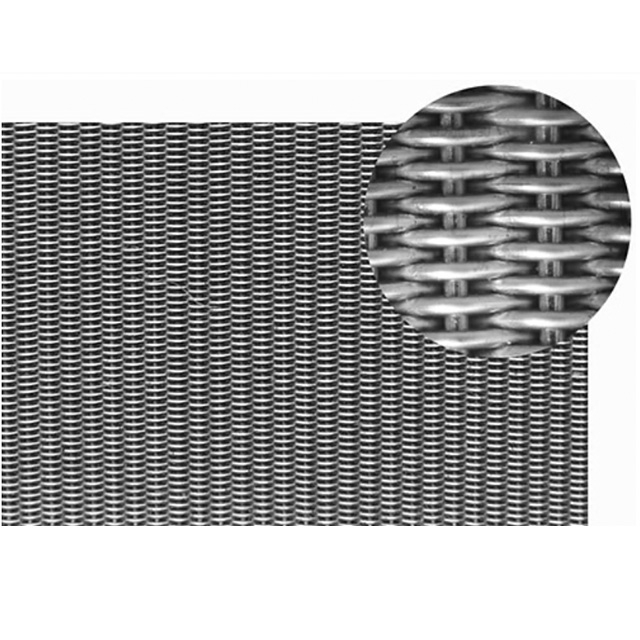

Dense wire mesh has different diameters of warp and weft filaments, and different mesh numbers. Reasonable matching of the warp and mesh to achieve the square mesh can not reach the filtration density. Therefore, mesh mesh is a fine filtration dense mesh, but generally the diameter of the warp wire is larger than the diameter of the weft wire. Contrast weaving method is called contrast because the weft threads are much thicker than the warp threads. (Mesh mesh to achieve the general stainless steel mesh is impossible to achieve the filtration precision)
Features: Stable and fine filtration performance.
Applications: Used in aerospace, petroleum, chemical and other industries.
| Twill weave mesh | ||||
| Strainer Number | Mesh | Diameter of wires(mm) | Diameter of holes(um) | |
| 360# | 91×787 | 0.11×0.07 | 25 | |
| 400# | 101×900 | 0.10×0.063 | 20 | |
| 472# | 120×400 | 0.10×0.075 | / | |
| 500# | 127×1100 | 0.07×0.05 | 17 | |
| 630# | 160×1500 | 0.063×0.04 | 15 | |
| 650#(1) | 165×400 | 0.071×0.06 | / | |
| 650#(2) | 165×600 | 0.071×0.05 | / | |
| 650#(3) | 165×800 | 0.071×0.05 | 25 | |
| 650#(4) | 165×1100 | 0.071×0.045 | / | |
| 650#(5) | 165×1400 | 0.071×0.04 | 16 | |
| 685# | 174×1700 | 0.063×0.032 | 13 | |
| 787#(1) | 200×600 | 0.071×0.06 | / | |
| 787#(2) | 200×800 | 0.071×0.06 | / | |
| 787#(3) | 200×1400 | 0.071×0.04 | 12 | |
| 795# | 202×1760 | 0.05×0.032 | 10 | |
| 850# | 216×1860 | 0.045×0.030 | 9 | |
| 1000# | 254×2000 | 0.04×0.028 | 8 | |
| 1125# | 285×2235 | 0.036×0.025 | 7 | |
| 1128# | 312×2100 | 0.035×0.025 | / | |
| Mesh | Diameter of wires | Diameter of holes | ||
| - | inch | mm | inch | mm |
| 1×1 | 0.080 | 2.030 | 0.920 | 23.370 |
| 2×2 | 0.063 | 1.600 | 0.437 | 11.100 |
| 3×3 | 0.054 | 1.370 | 0.279 | 7.090 |
| 4×4 | 0.063 | 1.600 | 0.187 | 4.750 |
| 4×4 | 0.047 | 1.190 | 0.203 | 5.160 |
| 5×5 | 0.041 | 1.040 | 0.159 | 4.040 |
| 6×6 | 0.035 | 0.890 | 0.132 | 3.350 |
| 8×8 | 0.028 | 0.710 | 0.097 | 2.460 |
| 10×10 | 0.025 | 0.640 | 0.075 | 1.910 |
| 10×10 | 0.020 | 0.510 | 0.080 | 2.030 |
| 12×12 | 0.023 | 0.584 | 0.060 | 1.520 |
| 12×12 | 0.020 | 0.508 | 0.063 | 1.600 |
| 14×14 | 0.023 | 0.584 | 0.048 | 1.220 |
| 14×14 | 0.020 | 0.508 | 0.051 | 1.300 |
| 16×16 | 0.018 | 0.457 | 0.0445 | 1.130 |
| 18×18 | 0.017 | 0.432 | 0.0386 | 0.980 |
| 20×20 | 0.020 | 0.508 | 0.0300 | 0.760 |
| 20×20 | 0.016 | 0.406 | 0.0340 | 0.860 |
| 24×24 | 0.014 | 0.356 | 0.0277 | 0.700 |
| 30×30 | 0.013 | 0.330 | 0.0203 | 0.520 |
| 30×30 | 0.012 | 0.305 | 0.0213 | 0.540 |
| 30×30 | 0.009 | 0.229 | 0.0243 | 0.620 |
