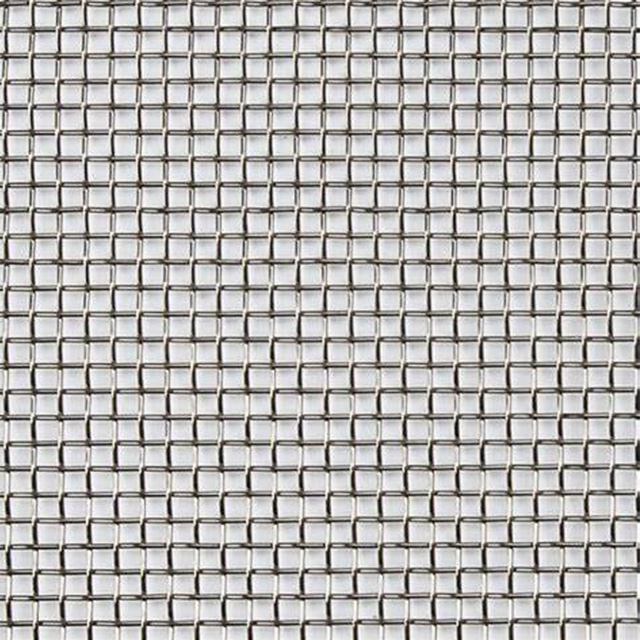

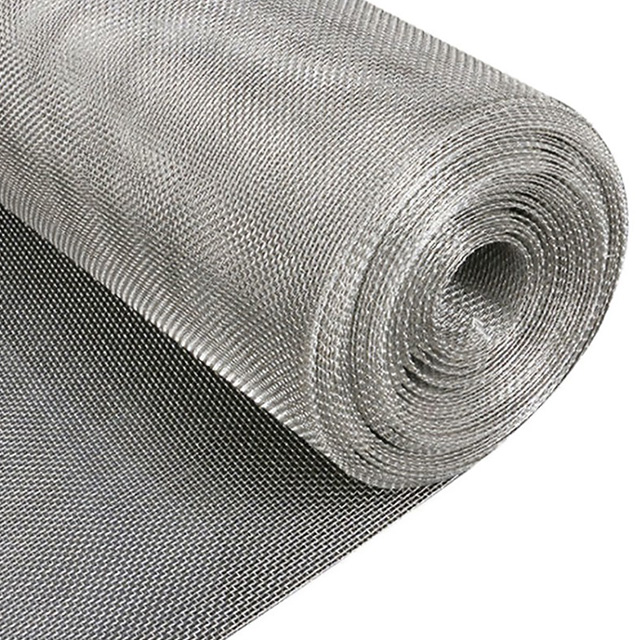

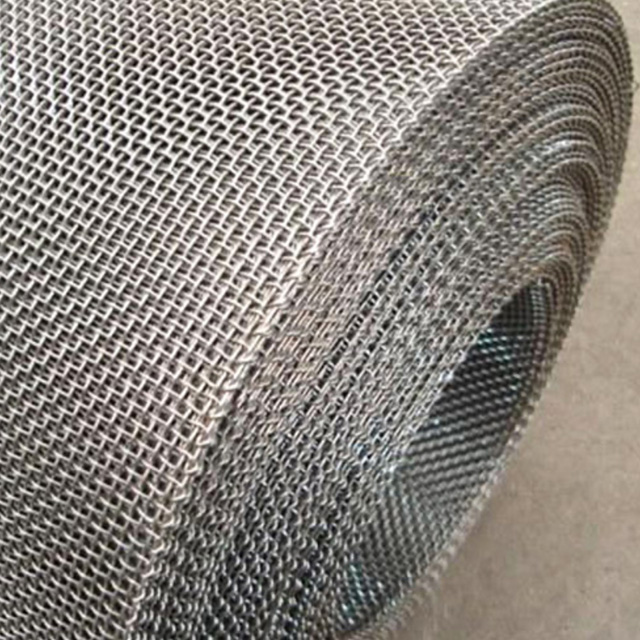

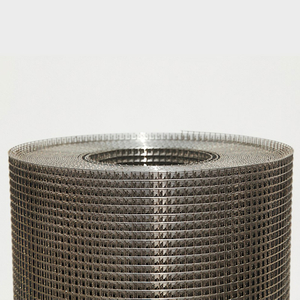

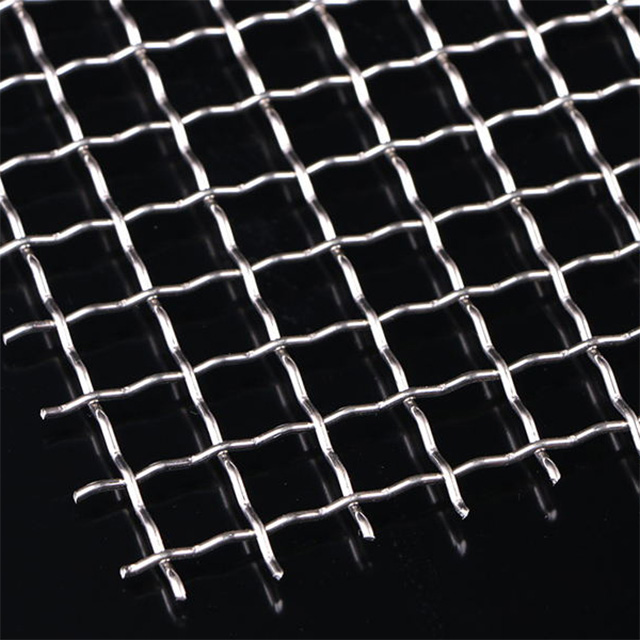

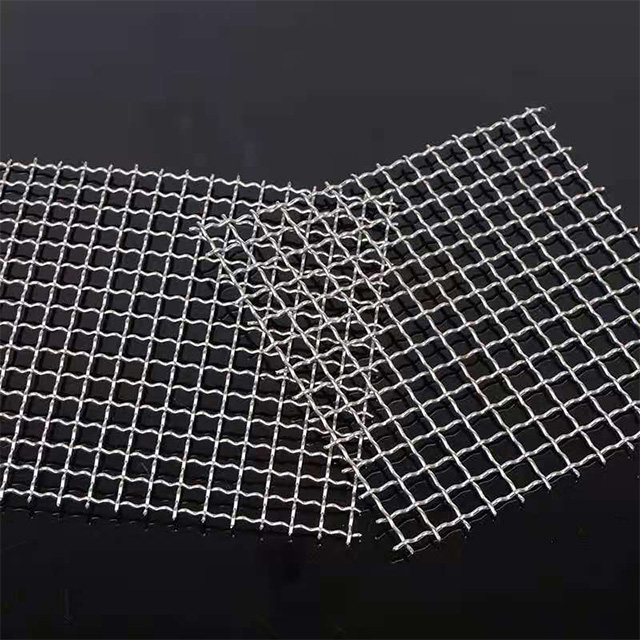

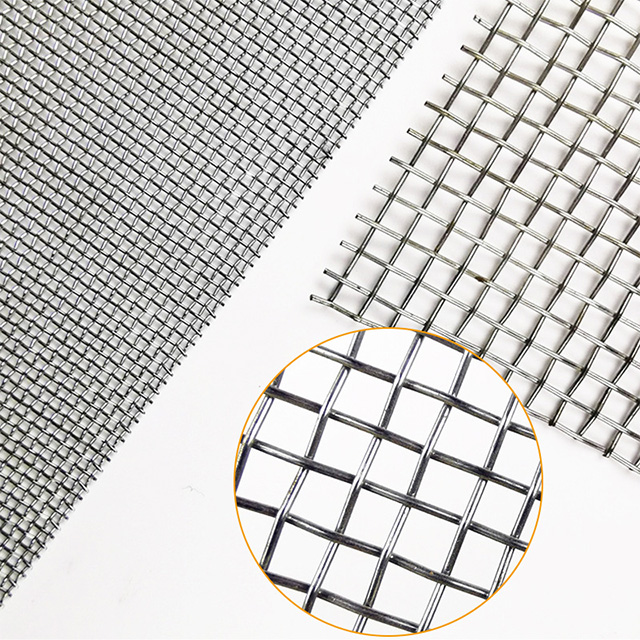

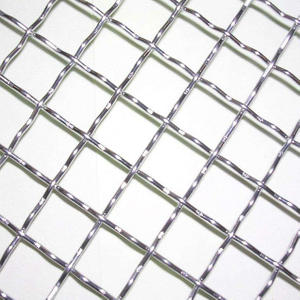

Stainless Steel Square Mesh, in woven or welded construction, include screen enclosures, railing infill panels, fan guards, filtration systems, and many other applications. Plain weaves are considered to be the most stable mesh form and are used in many applications throughout manufacturing industry.
Stainless Steel Square Mesh normally includes Plain Weave, Twill Weave and Tensile Bolt Cloth.

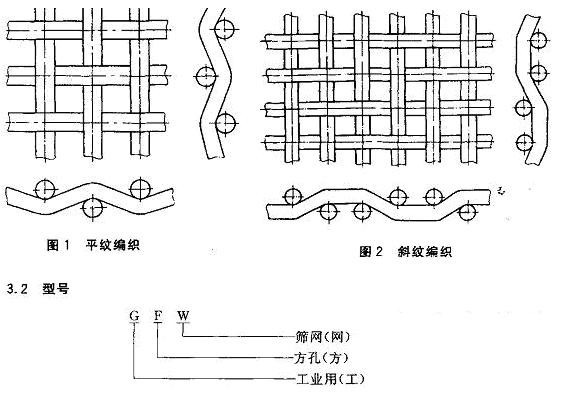

Plain Weave:
In a plain weave pattern, each weft wire passes alternately over and under the warp wire and vice versa. It is the most widely available pattern and typically incorporates wire of the same diameter in both directions.
Plain weaves are considered to be the most stable mesh form and are used in many applications throughout manufacturing industry.

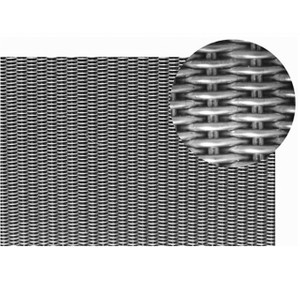

Twill Weave:
A twill pattern follows the same principle as plain weave, but each passes alternately under and over two warp wires and vice versa.
As a consequence of the woven path, the strand is deformed less during weaving, which not only allows a larger diameter wire to be used but also results in a stronger structure when compared to the plain weave counterpart.
Twill weave meshes are generally woven with apertures smaller than 70 microns, 250 mesh for example, but coarser specifications can be produced when required.

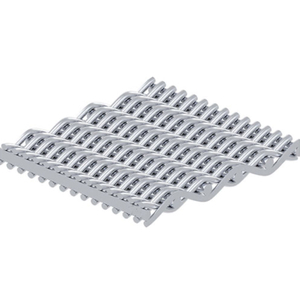

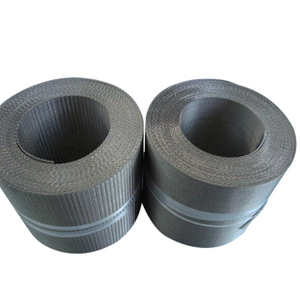

Tensile Bolt Cloth:
Tensile Bolt Cloth, wire dia is smaller than the normal spec. It is square mesh or retangular mesh; it is specified to be applied as screen mesh media.
We conducted the mesh quality based on ASTM E 2016-15 Standard and control raw material based on ASTM A580-14 standard, whilst we could follow customized requirement .
Materials: SUS302, 304, 304L, 316, 316L, 310s, etc.
Applications:
1. Used for sieving and filtering under acid and alkali environmental conditions, mud net in petroleum industry, sieving and filtering net in chemical and chemical fiber industry, pickling net in electroplating industry.
2. Widely used in industry and construction, screening sand, filtering liquids and gases, also used for safety protection of mechanical accessories, etc.
1. Precision Woven Structure: Our stainless steel square mesh features a uniform square hole pattern, ensuring consistent and accurate filtration, screening, and separation for a wide range of applications.
2. High Strength & Durability: Made from premium-grade stainless steel, this mesh offers exceptional resistance to corrosion, heat, and wear, making it ideal for demanding environments.
3. Wide Range of Sizes: Available in various mesh sizes and wire diameters, the stainless steel square hole mesh caters to diverse industrial needs, from fine filtration to heavy-duty screening.
4. Excellent Flow Rates: The open square design allows for optimal fluid or air flow while maintaining effective filtration, reducing pressure drop and improving operational efficiency.
5. Easy to Clean & Maintain: The smooth surface and robust construction make cleaning and maintenance hassle-free, ensuring long-term performance and cost savings.
6. Versatile Applications: Perfect for industries such as food processing, chemical, mining, construction, and architecture, this mesh is a reliable solution for filtration, sieving, shielding, and decorative purposes.
Corrosion-resistant stainless steel material
Uniform square hole pattern for precise filtration
High-temperature and chemical resistance
Durable and long-lasting performance
Customizable sizes and specifications
Our stainless steel square hole mesh is engineered to deliver unmatched quality and performance. Whether you need reliable filtration, robust screening, or aesthetic design solutions, our mesh is the perfect choice. With its superior durability and versatility, it’s designed to meet the highest industry standards.
