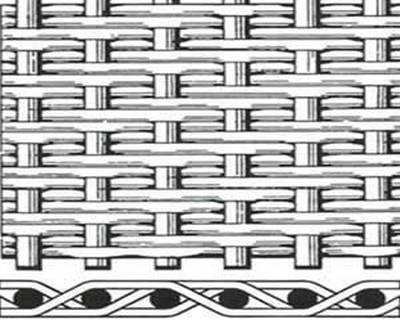

The dutch weave mesh is formed by weaving a limited number of warp threads to closely weave the largest number of weft threads together, resulting in a cloth that does not have holes that are easy to see. Dutch weave mesh is strong, stable, easy to clean and has a high flow rate, suitable for high-pressure liquid/solid separation.
316L ,317L 904L stainless steel woven square mesh and dutch weave mesh as main supporting and filtration media of leaf filter which is used in the processing of food ,edible oil, pharmaceuticals and chemicals.
1. Superior Strength
2. Superior filtration capabilities
3. High level of mechanical load
4. High flow rate
5. Minimal pressure drop
6. Precision Weave
7. Resistance to Clogging
Dutch woven wire mesh is mainly used for filtration. It provides excellent filtering capabilities for a wide range of applications, such as petrochemical, pharmaceuticals, mining industry and waste water.

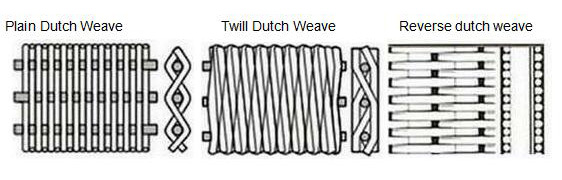

Plain Dutch and Twill Dutch and particular RDT mesh are normally used in the applications of Water well treatment and sand control system.
Fine Dutch Weave Mesh as finer absolute filtration layer of sintered mesh and accurate chemical filtration,with max width 3m.which is outstanding performance in China woven mesh industry.
| Mesh/Inch | Wire Dia.warpXweft(mm) | Normal size (um) | Effective area% | Cloth thicknes(mm) | Weight (kg/sq.m) |
| (warpXweft) | |||||
| 7×14 | 0.71×0.63 | 320 | 14.2 | 1.97 | 5.24 |
| 8×60 | 0.63×0.45 | 300 | 20.4 | 1.53 | 4.04 |
| 8×85 | 0.35×0.32 | 270 | 27.3 | 0.93 | 2.51 |
| 10×90 | 0.45×0.28 | 250 | 29.2 | 0.98 | 2.57 |
| 10×76 | 0.50×0.34 | 245 | 21.8 | 1.2 | 3.16 |
| 12×86 | 0.45×0.31 | 215 | 20.6 | 1.06 | 2.86 |
| 12×64 | 0.56×0.40 | 210 | 16 | 1.36 | 3.89 |
| 12×76 | 0.45×0.35 | 190 | 15.9 | 1.16 | 3.26 |
| 14×100 | 0.40×0.28 | 185 | 20.3 | 0.96 | 2.56 |
| 14×88 | 0.50×0.30 | 180 | 23 | 1.1 | 2.85 |
| 14×110 | 0.35×0.25 | 175 | 22.2 | 0.85 | 2.28 |
| 16×100 | 0.40×0.28 | 160 | 17.6 | 0.96 | 2.64 |
| 16×120 | 0.28×0.22 | 145 | 19.2 | 0.72 | 1.97 |
| 20×140 | 0.315×0.20 | 130 | 21.5 | 0.71 | 1.97 |
| 20×150 | 0.25×0.18 | 125 | 27 | 0.59 | 1.53 |
| 25×140 | 0.28×0.20 | 100 | 15.2 | 0.68 | 1.92 |
| 24×110 | 0.36×0.25 | 90 | 13 | 0.85 | 2.4 |
| 30×150 | 0.25×0.18 | 80 | 13.6 | 0.6 | 1.68 |
| 35×170 | 0.22×0.16 | 70 | 12.8 | 0.54 | 1.58 |
| 40×200 | 0.18×0.14 | 60 | 15 | 0.46 | 1.4 |
| 50×250 | 0.14×0.11 | 50 | 16 | 0.36 | 0.99 |
| 60×300 | 0.14×0.09 | 40 | 14.1 | 0.32 | 0.96 |
| 80×400 | 0.125×0.06 | 35 | 16.6 | 0.25 | 0.77 |
1. Superior Filtration & Strength: Our stainless steel Dutch wire mesh boasts a unique woven structure, offering exceptional filtration efficiency and unmatched strength for demanding applications.
2. Corrosion-Resistant & Durable: Crafted from high-quality stainless steel, this mesh resists rust, chemicals, and extreme temperatures, ensuring long-lasting performance.
3. Precise & Versatile: Available in a wide range of mesh sizes and wire diameters, our Dutch weave mesh delivers precise filtration for industries like chemical processing, aerospace, and food & beverage.
4. Optimal Flow Rates: The tightly woven design minimizes pressure drop while maintaining excellent filtration capabilities, maximizing flow rates and operational efficiency.
5. Easy to Clean & Maintain: The smooth surface and robust construction allow for easy cleaning and reuse, reducing downtime and maintenance costs.
Cremotive as a professional dutch weave mesh manufacturer produces a wide range of custom dutch weave mesh to meet the filtration needs of our customers.Stainless Steel Dutch Wire Mesh is resistant to heat, acid, corrosion and wear. Dutch weave filter mesh provides superior filtration capabilities.
The dutch weave mesh is formed by weaving a limited number of warp threads to closely weave the largest number of weft threads together, resulting in a cloth that does not have holes that are easy to see. Dutch weave mesh is strong, stable, easy to clean and has a high flow rate, suitable for high-pressure liquid/solid separation.
316L ,317L 904L stainless steel woven square mesh and dutch weave mesh as main supporting and filtration media of leaf filter which is used in the processing of food ,edible oil, pharmaceuticals and chemicals.
1. Superior Strength
2. Superior filtration capabilities
3. High level of mechanical load
4. High flow rate
5. Minimal pressure drop
6. Precision Weave
7. Resistance to Clogging
Dutch woven wire mesh is mainly used for filtration. It provides excellent filtering capabilities for a wide range of applications, such as petrochemical, pharmaceuticals, mining industry and waste water.
Plain Dutch and Twill Dutch and particular RDT mesh are normally used in the applications of Water well treatment and sand control system.
Fine Dutch Weave Mesh as finer absolute filtration layer of sintered mesh and accurate chemical filtration,with max width 3m.which is outstanding performance in China woven mesh industry.
| Mesh/Inch | Wire Dia.warpXweft(mm) | Normal size (um) | Effective area% | Cloth thicknes(mm) | Weight (kg/sq.m) |
| (warpXweft) | |||||
| 7×14 | 0.71×0.63 | 320 | 14.2 | 1.97 | 5.24 |
| 8×60 | 0.63×0.45 | 300 | 20.4 | 1.53 | 4.04 |
| 8×85 | 0.35×0.32 | 270 | 27.3 | 0.93 | 2.51 |
| 10×90 | 0.45×0.28 | 250 | 29.2 | 0.98 | 2.57 |
| 10×76 | 0.50×0.34 | 245 | 21.8 | 1.2 | 3.16 |
| 12×86 | 0.45×0.31 | 215 | 20.6 | 1.06 | 2.86 |
| 12×64 | 0.56×0.40 | 210 | 16 | 1.36 | 3.89 |
| 12×76 | 0.45×0.35 | 190 | 15.9 | 1.16 | 3.26 |
| 14×100 | 0.40×0.28 | 185 | 20.3 | 0.96 | 2.56 |
| 14×88 | 0.50×0.30 | 180 | 23 | 1.1 | 2.85 |
| 14×110 | 0.35×0.25 | 175 | 22.2 | 0.85 | 2.28 |
| 16×100 | 0.40×0.28 | 160 | 17.6 | 0.96 | 2.64 |
| 16×120 | 0.28×0.22 | 145 | 19.2 | 0.72 | 1.97 |
| 20×140 | 0.315×0.20 | 130 | 21.5 | 0.71 | 1.97 |
| 20×150 | 0.25×0.18 | 125 | 27 | 0.59 | 1.53 |
| 25×140 | 0.28×0.20 | 100 | 15.2 | 0.68 | 1.92 |
| 24×110 | 0.36×0.25 | 90 | 13 | 0.85 | 2.4 |
| 30×150 | 0.25×0.18 | 80 | 13.6 | 0.6 | 1.68 |
| 35×170 | 0.22×0.16 | 70 | 12.8 | 0.54 | 1.58 |
| 40×200 | 0.18×0.14 | 60 | 15 | 0.46 | 1.4 |
| 50×250 | 0.14×0.11 | 50 | 16 | 0.36 | 0.99 |
| 60×300 | 0.14×0.09 | 40 | 14.1 | 0.32 | 0.96 |
| 80×400 | 0.125×0.06 | 35 | 16.6 | 0.25 | 0.77 |
1. Superior Filtration & Strength: Our stainless steel Dutch wire mesh boasts a unique woven structure, offering exceptional filtration efficiency and unmatched strength for demanding applications.
2. Corrosion-Resistant & Durable: Crafted from high-quality stainless steel, this mesh resists rust, chemicals, and extreme temperatures, ensuring long-lasting performance.
3. Precise & Versatile: Available in a wide range of mesh sizes and wire diameters, our Dutch weave mesh delivers precise filtration for industries like chemical processing, aerospace, and food & beverage.
4. Optimal Flow Rates: The tightly woven design minimizes pressure drop while maintaining excellent filtration capabilities, maximizing flow rates and operational efficiency.
5. Easy to Clean & Maintain: The smooth surface and robust construction allow for easy cleaning and reuse, reducing downtime and maintenance costs.
Cremotive as a professional dutch weave mesh manufacturer produces a wide range of custom dutch weave mesh to meet the filtration needs of our customers.Stainless Steel Dutch Wire Mesh is resistant to heat, acid, corrosion and wear. Dutch weave filter mesh provides superior filtration capabilities.
