Stainless steel wire mesh is widely used in heavy industry (chemical, petrochemical, iron and steel, machinery, energy, building materials) and high-tech industry (nuclear industry, aerospace, electronics), light industry (textile, food, pharmaceuticals, papermaking) and other industrial sectors, and is an indispensable metal replacement material in some areas.

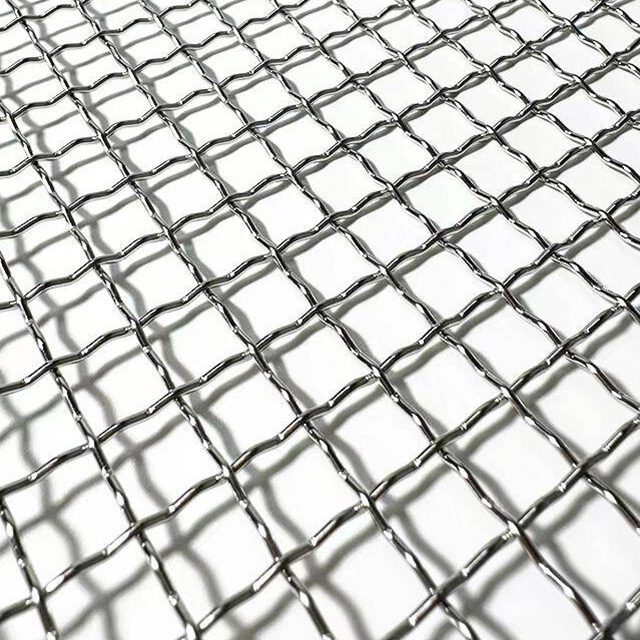

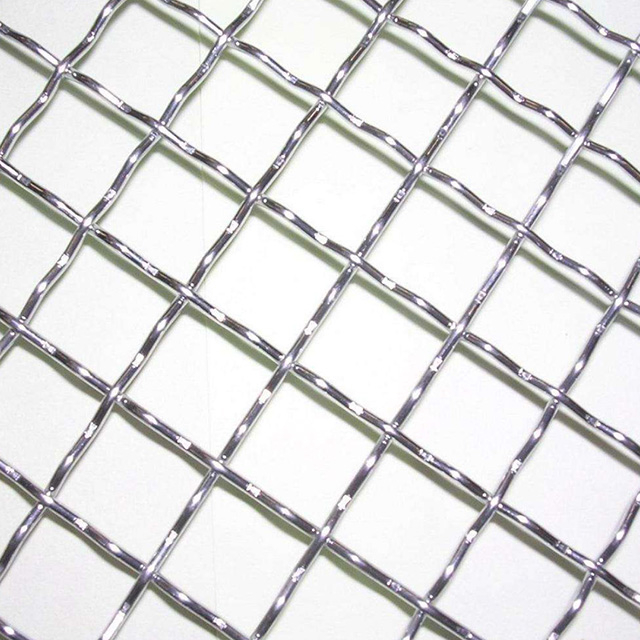

Stainless steel wire mesh is woven from stainless steel wire, with excellent characteristics of acid resistance, alkali resistance, high temperature resistance, wear resistance and so on. It is mainly used for filtering and sieving various gases, liquids and solids.
Features: High wear resistance, temperature resistance, acid and alkali resistance, temperature resistance, anti static, long service life.
Material: Stainless steel 304,304L,316,316L,430 etc.
Pattern/Style:

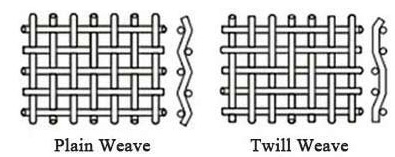

1. Plain Weave(Tabby weave): also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

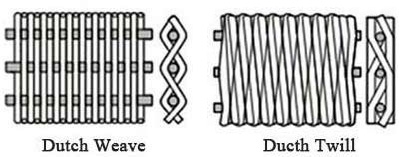

3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Application:
1. Screening mesh and filtration filter in acid, alkali environment s
2. Filtration and separation of gases, liquids and solids
3. For a slurry net Petroleum industry
4. Chemical fiber industry
5. Used for Mechanical accessory security etc.
Stainless steel wire mesh is widely used in heavy industry (chemical, petrochemical, iron and steel, machinery, energy, building materials) and high-tech industry (nuclear industry, aerospace, electronics), light industry (textile, food, pharmaceuticals, papermaking) and other industrial sectors, and is an indispensable metal replacement material in some areas.
Stainless steel wire mesh is woven from stainless steel wire, with excellent characteristics of acid resistance, alkali resistance, high temperature resistance, wear resistance and so on. It is mainly used for filtering and sieving various gases, liquids and solids.
Features: High wear resistance, temperature resistance, acid and alkali resistance, temperature resistance, anti static, long service life.
Material: Stainless steel 304,304L,316,316L,430 etc.
Pattern/Style:
1. Plain Weave(Tabby weave): also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Application:
1. Screening mesh and filtration filter in acid, alkali environment s
2. Filtration and separation of gases, liquids and solids
3. For a slurry net Petroleum industry
4. Chemical fiber industry
5. Used for Mechanical accessory security etc.
