Stainless Steel Dutch Wire Mesh for Filtering

Stainless Steel Dutch Wire Mesh for Filtering - Anping CREMOTIVE Wire Mesh Products Co., Ltd.

Product Introduction

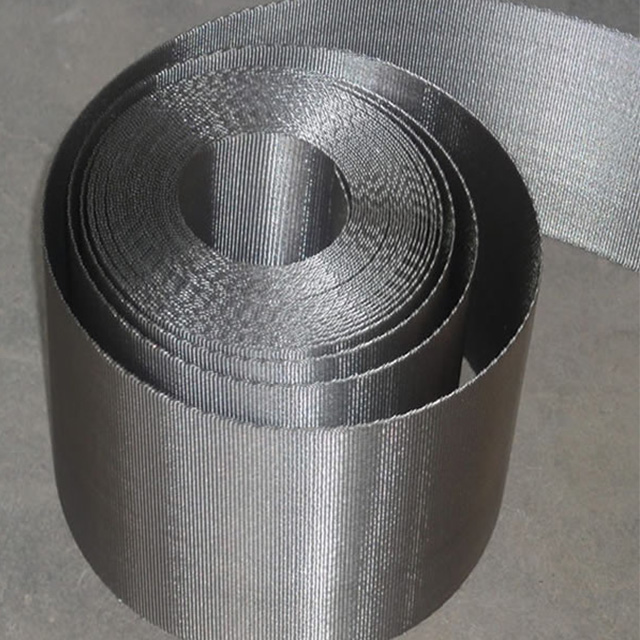

Anping CREMOTIVE Wire Mesh Products Co., Ltd. specializes in manufacturing high-performance stainless steel Dutch wire mesh for precision filtering applications. Our Dutch weave mesh is engineered to provide superior filtration efficiency with excellent durability.

Product Characteristics

1. Weave Structure

• Unique Dutch weave pattern combining thick warp wires with fine weft wires

• Tightly woven construction for precise particle retention

• Smooth surface for easy cleaning and maintenance

2. Material Options

• Standard grades: 304, 316, and 316L stainless steel

• Optional nickel alloys for extreme environments

• Custom material combinations available

3. Performance Features

• High filtration accuracy with consistent pore size

• Excellent mechanical strength under pressure

• Good resistance to corrosion and chemical attack

• Low pressure drop with high flow rates

Technical Specifications

• Mesh Count: 20-400 mesh

• Wire Diameter Range: 0.05mm-0.50mm

• Filtration Rating: 5-200 microns

• Standard Widths: Up to 2000mm

• Custom Lengths: Available upon request

Industrial Applications

1. Liquid Filtration

• Hydraulic and lubrication systems

• Fuel and oil filtration

• Water treatment processes

2. Chemical Processing

• Acid filtration

• Polymer production

• Catalyst recovery

3. Specialized Uses

• Pharmaceutical manufacturing

• Food and beverage processing

• Semiconductor production

Quality Control

Our manufacturing process includes:

• Material certification verification

• Precision weaving control

• Microscopic quality inspection

• Dimensional accuracy testing

• Performance validation

Custom Solutions

We provide tailored configurations including:

• Special wire diameter combinations

• Non-standard widths and lengths

• Edge reinforcement treatments

• Surface finishing options

• Heat treatment when required

For technical specifications or application consultation, our engineering team is available to provide support. Samples and material test reports can be provided upon request.
