Steel Grade: Aisi 304,304L,316,316L,etc.
Wire diameter: 0.03mm-5.0mm
Technology demand: soft wire,hard wire,bright wire.
heat-resisting
Corrosion resistance
Good toughness
AISI material | Chemical composition (%) | |||||||||
- | 碳 | 硅 | 锰 | 磷 | 硫 | 镍 | 铬 | 钼 | 铜 | 钛 |
C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Ti | |
304 | <0.08 | <1 .0 | <2.0 | <0.035 | <0.03 | 8~10 | 17~19 | - | - | - |
304L | <0.03 | <1 .0 | <2.0 | <0.04 | <0.03 | 9~13 | 18~20 | - | - | - |
304HC | <0.06 | <1 .0 | 1.2-1 .8 | <0.035 | <0.03 | 8~11 | 17~19 | - | 2.0-3.0 | - |
316 | <0.08 | <1 .0 | <2.0 | <0.04 | <0.03 | 10~14 | 16~18 | 2.0~3.0 | - | - |
316L | <0.03 | <1 .0 | <2.0 | <0.04 | <0.03 | 12~15 | 16~18 | 2.0~3.0 | - | - |
310S | <0.08 | <1 .5 | <2.0 | <0.04 | <0.03 | 19~22 | 24~26 | - | - | - |
321 | <0.08 | <1 .0 | <2.0 | <0.045 | <0.03 | 9~13 | 17~19 | - | - | >0.035 |
301 | <0.15 | <1 .0 | <2 .0 | <0.04 | <0.03 | >7 | 16~18 | - | - | - |
302 | <0.15 | <1 .0 | <2.0 | <0.04 | <0.03 | >8 | 17~19 | - | - | - |
| Stainless Steel Wire Bearing Capacity Data | |||||||
| Diameter(mm) | Recommended capacity(kg) | Maximum capacity(kg) | Per kilogram length(m) | Diameter(mm) | Recommended capacity(kg) | Maximum capacity(kg) | Per kilogram length(m) |
| 0.2 | 2.2 | 8.0 | 4000.0 | 1.5 | 41.75 | 167.0 | 70.0 |
| 0.3 | 3.0 | 12.1 | 1700.0 | 2.0 | 56.25 | 225.0 | 40.0 |
| 0.4 | 5.1 | 20.4 | 1000.0 | 2.5 | 73.50 | 294.0 | 25.6 |
| 0.5 | 8.3 | 33.2 | 650.0 | 3.0 | 159.00 | 637.0 | 17.8 |
| 0.6 | 12.4 | 49.7 | 450.0 | 3.5 | - | - | 13.1 |
| 0.7 | 16.0 | 66.0 | 330.0 | 4.0 | - | - | 10.0 |
| 0.8 | 21.7 | 86.7 | 250.0 | 5.0 | - | - | 6.4 |
| 1.0 | 24.5 | 98.0 | 160.0 | 6.0 | - | - | 4.4 |
| The recommended capacity is the soft state test data of the steel wire, and the maximum capacity is the hard state test data of the steel wire. The data is for reference only and subject to actual usage. | |||||||
1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire,
shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle
fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative
handles and baskets
4). Food and medical machinery accessions and many more applications.

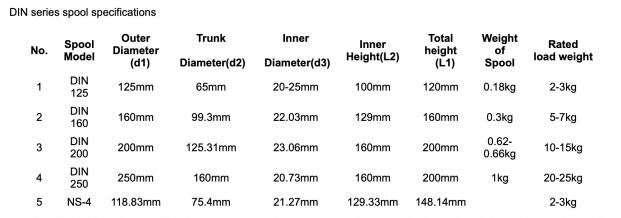

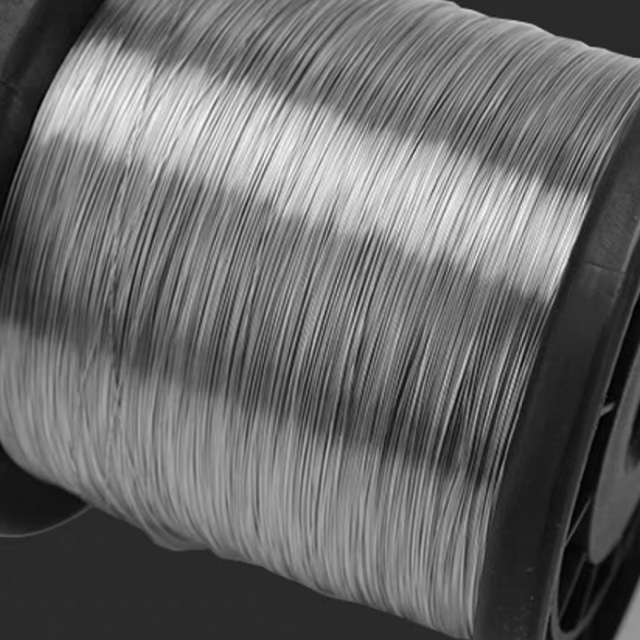

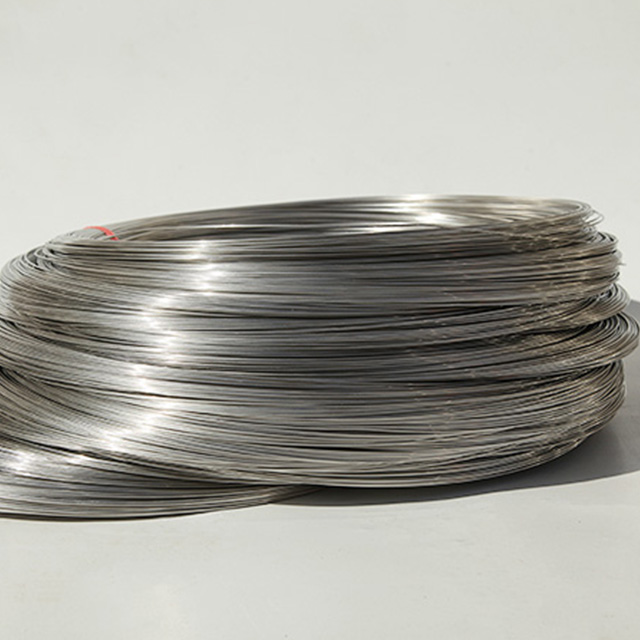

Packing：Supplied in coil or on spool form, then shipped in wooden cases.
FAQ:
1. Are you trading company or manufacturer?
Our Company is a stainless steel wire & mesh manufacturer.
2. How long is you delivery time?
a. Generally it is 3-5 days ,if the goods or sample are in stock.
b. If customized,it is 25-45 days longer time,it is depend on the quantity and product’s specifications
3. Do you provide samples? Is it free or extra?
Yes,we could offer the sample. Free sample size is smaller than 20x20cm.
But the express fee is paid by client.
4. What is your terms of payment?
30% in advance,70% the balance against the copy of the B/L
FAQ about stainless steel wires:
1. Why is stainless steel also magnetic?
304 stainless steel itself is not magnetic, but the working magnetic will be generated during the processing.
The traditional method of measuring whether stainless steel is magnetic is wrong, and even iron can be demagnetized.
2. How to detect stainless steel?
Stainless steel can be detected with stainless steel detection solution, spectrometer, salt spray test.
3. Will stainless steel rust?
Common on the market is divided into 201 304 316 stainless steel 201 stainless steel is suitable for indoor dry and no air pollution environment, 304 stainless steel in a dry and clean atmosphere, has absolutely excellent corrosion resistance, will not rust in the water, sun and rain, but move it to the seaside area, in the sea fog containing a lot of salt, It will soon rust the seaside area to use 316 stainless steel, 316 material can resist seawater corrosion.
